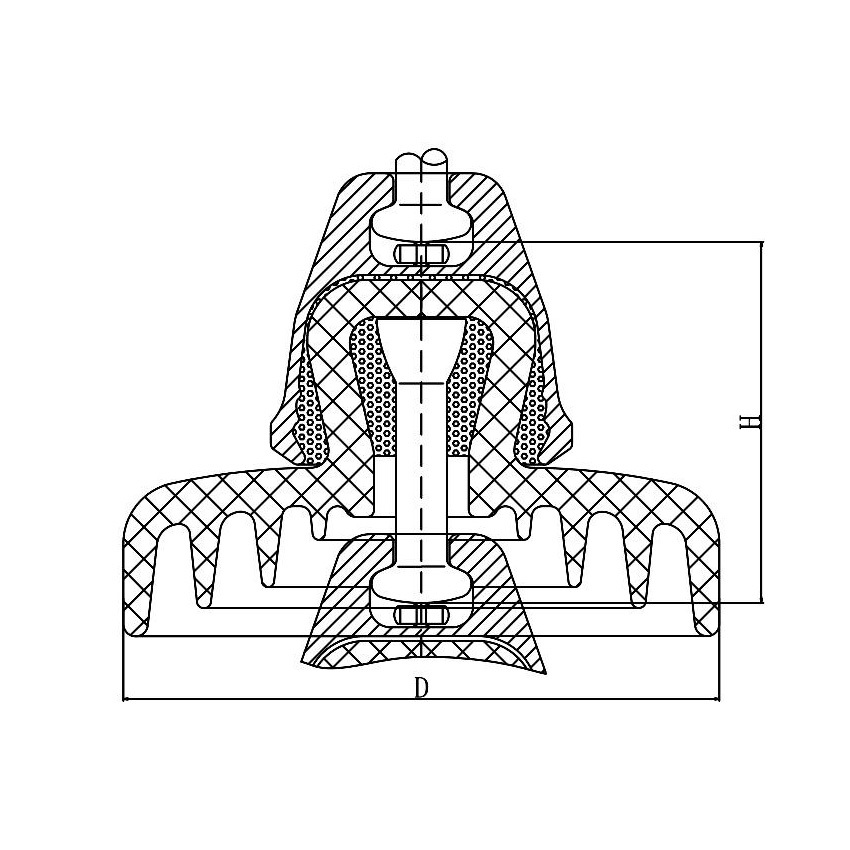

Communication Bell Jar Type (2)
Key words：
Communication Bell Jar
Classification：
Product Details
| IEC | U160BMP | U210BP | U210BP | U240BP | U300BP | ||||
| Insulator Code | U160BP/155 | U210BP/170 | U210BP/170 | U240BP/170 | U300BP/195 | ||||
| Model | XHP—160 | XHP—210 | XHP1—210 | XHP1—240 | XHP1—300 | ||||
| Rated Electromechanical Destruction Load (kN) | 160 | 210 | 210 | 240 | 300 | ||||
| Individual Tensile Load (kN) | 80 | 105 | 105 | 120 | 150 | ||||
| Nominal Disc Diameter D (mm) | 330 | 300 | 330 | 330 | 330 | ||||
| Nominal Structural Height H (mm) | 155 | 170 | 170 | 170 | 195 | ||||
Nominal Creepage Distance (mm) |
550 | 470 | 550 | 550 | 505 | ||||
Connection Mark (mm) |
20 | 20(24) |
20(24) |
24 | 24 | ||||
| Locking Pin Type | R | R | R | R | R | ||||
| Withstand Voltage (kV) | Power Frequency | Dry | 80 | 80 | 80 | 80 | 85 | ||
| Wet | 50 | 50 | 50 | 50 | 50 | ||||
| Lightning Impulse | 110 | 120 | 125 | 125 | 130 | ||||
| Power Frequency Breakdown Voltage (kV) | 130 | 130 | 130 | 130 | 130 | ||||
| Impulse Breakdown Voltage (p.u.) | 2.85～3.19 | 2.85～3.19 | 2.85～3.19 | 2.85～3.19 | 2.85～3.19 | ||||
| Radio Interference Voltage | Ground Test Voltage (kV) | 10 | 10 | 10 | 10 | 10 | |||
| Maximum RIV (1MHz) (uV) | 50 | 50 | 50 | 50 | 50 | ||||
| Weight (kg) | 12.5 | 12.5 | 14 | 14.5 | 15.1 | ||||
GB/T1001.1, IEC60383-1
