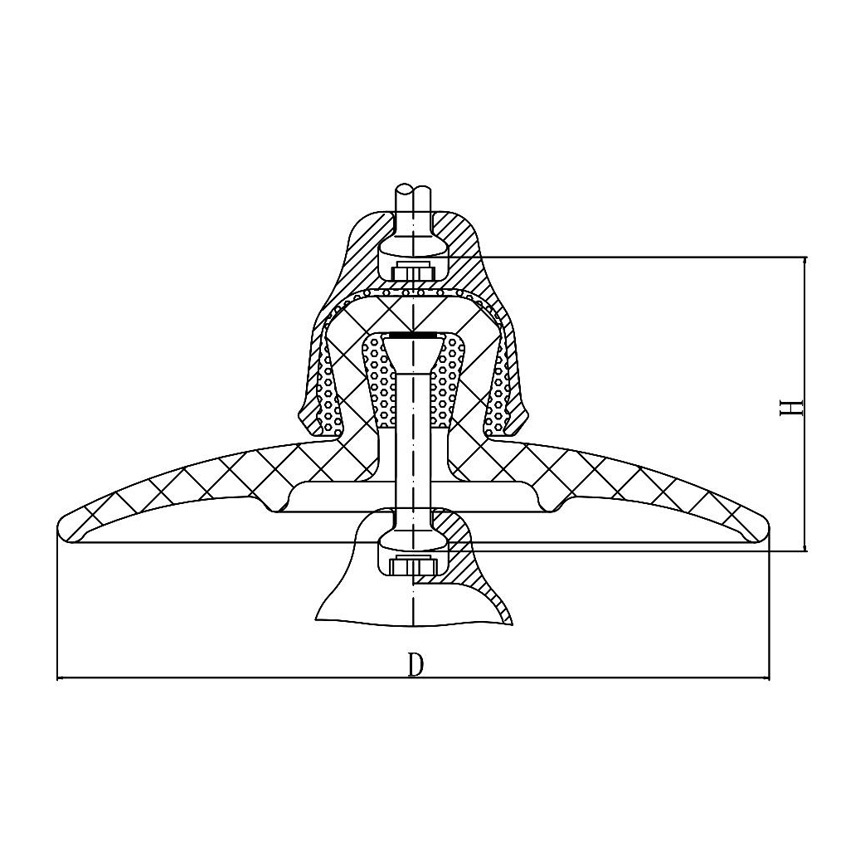

Straw Hat Type
Key words：
Straw Hat Type
Classification：
Product Details
| IEC | U70BLP | U100BLP | U120BLP | U160BMP | U210BP | ||||
| Insulator Code | U70BP/146M | U100BP/146M | U120BP/146M | U160BP/155M | U210BP/170M | ||||
| Model | XMP—70 | XMP—100 | XMP—120 | XMP—160 | XMP—210 | ||||
| Rated Electromechanical Destruction Load (kN) | 70 | 100 | 120 | 160 | 210 | ||||
| Individual Tension Load (kN) | 35 | 50 | 60 | 80 | 105 | ||||
| Nominal Disc Diameter D (mm) | 350 | 360 | 360 | 425 | 400 | ||||
| Nominal Structural Height H (mm) | 146 | 146 | 146 | 155 | 170 | ||||
| Nominal Creepage Distance (mm) | 340 | 340 | 340 | 385 | 380 | ||||
Connection Mark (mm) |
16 | 16 | 16 | 20 | 20 | ||||
| Locking Pin Type | R | R | R | R | R | ||||
| Withstand Voltage (kV) | Power Frequency | Dry | 75 | 75 | 75 | 75 | 75 | ||
| Wet | 40 | 40 | 40 | 40 | 40 | ||||
| Lightning Impulse | 105 | 105 | 105 | 115 | 125 | ||||
| Power Frequency Breakdown Voltage (kV) | 120 | 120 | 120 | 120 | 120 | ||||
| Impulse Breakdown Voltage (p.u.) | 2.85～3.19 | 2.85～3.19 | |||||||
| Radio Interference Voltage | Ground Test Voltage (kV) | 10 | 10 | 10 | 10 | 10 | |||
| Maximum RIV (1MHz) (uV) | 50 | 50 | 50 | 50 | 50 | ||||
| Weight (kg) | 7.4 | 7.9 | 7.9 | 10.7 | 11 | ||||
GB/T1001.1, IEC60383-1
