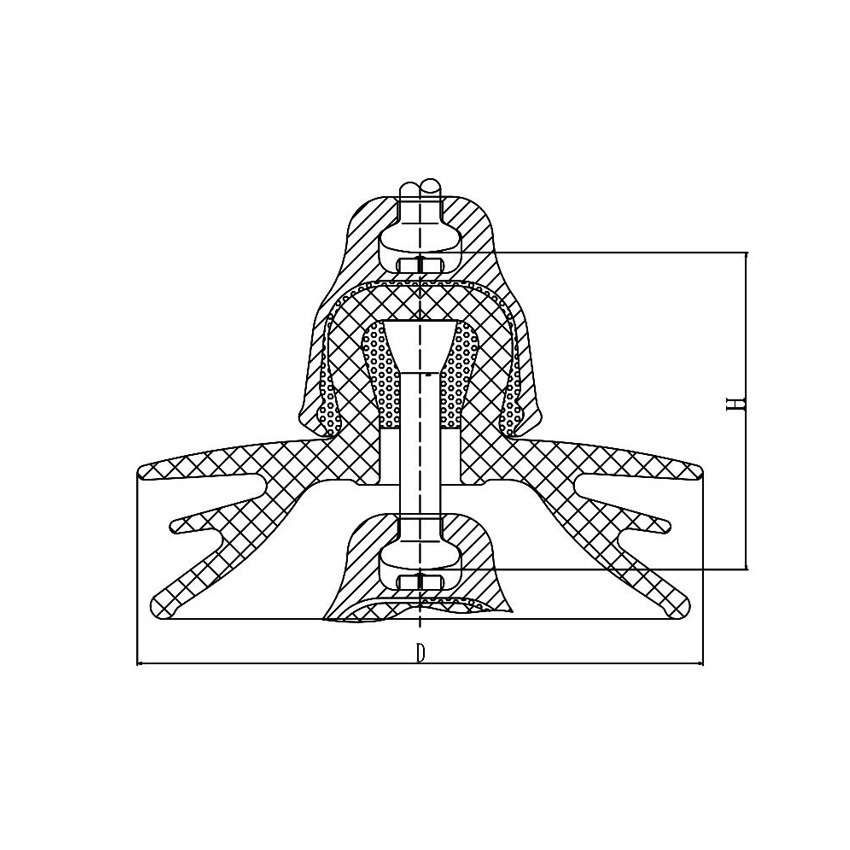

Communication Three Umbrella Type (3)
Key words：
Communication Three Umbrella Type
Classification：
Product Details
| IEC | U300BP | U420BP | |||||
| Insulator Code | U300BP/195T | U300BP/195T | U420BP/205T | ||||
| Model | XSP—300 | XSP1—300 | XSP—420 | ||||
| Rated Electromechanical Destruction Load (kN) | 300 | 300 | 420 | ||||
| Individual Tension Load (kN) | 150 | 150 | 210 | ||||
| Nominal Disc Diameter D(mm) | 360 | 400 | 350 | ||||
| Nominal Structural Height H(mm) | 195 | 195 | 205 | ||||
| Nominal Creepage Distance (mm) | 550 | 635 | 550 | ||||
| Connection Mark (mm) | 24 | 24 | 28 | ||||
| Locking Pin Type | R | R | R | ||||
Withstand Voltage (kV) |
Power Frequency | Dry | 85 | 100 | 85 | ||
| Wet | 50 | 60 | 50 | ||||
| Lightning Impulse | 140 | 135 | 140 | ||||
| Power Frequency Breakdown Voltage (kV) | 130 | 130 | 140 | ||||
| Impulse Breakdown Voltage (p.u.) | 2.85～3.19 | 2.85～3.19 | 2.85～3.19 | ||||
| Radio Interference Voltage | Ground Test Voltage (kV) | 10 | 10 | 10 | |||
| Maximum R IV(1MHz)(uV) | 50 | 50 | 50 | ||||
| Weight (kg) | 16.3 | 20.1 | 22 | ||||
GB/T1001.1, IEC60383-1
