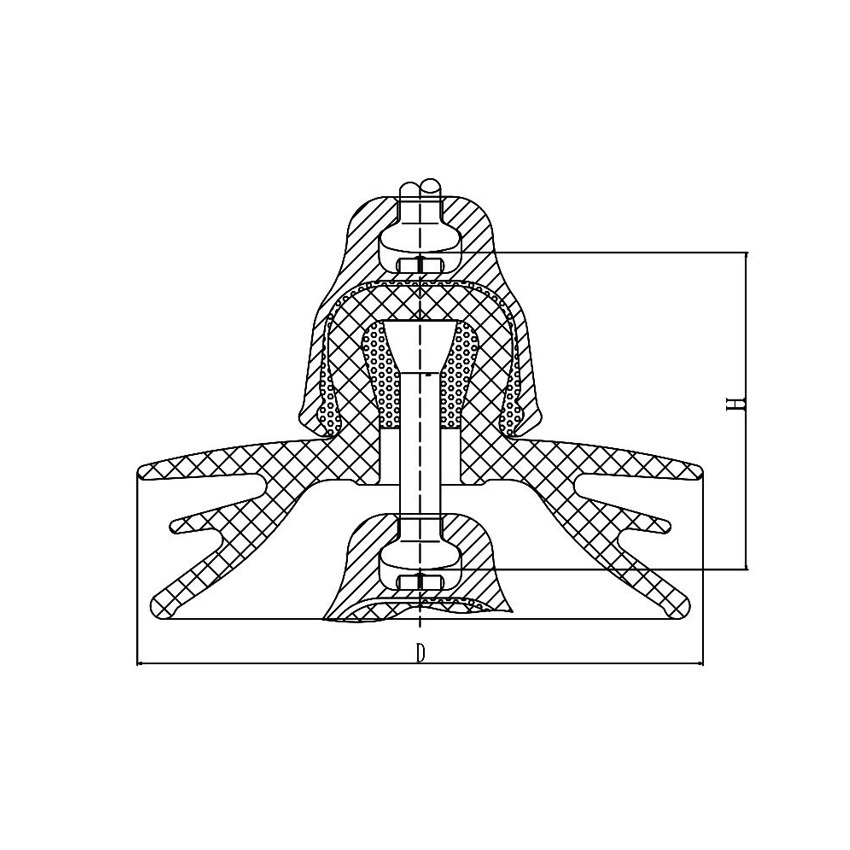

Communication Three Umbrella Type (2)
Key words：
Communication Three Umbrella Type
Classification：
Product Details
| IEC | U160BM/LP | U210BP | U240BP | ||||
| Insulator Code | U160BP/155T U160BP/160T U160BP/170T |
U210BP/170T | U240BP/170T | ||||
Model |
XSP—160 XSP1—160 XSP2—160 |
XSP—210 | XSP—240 | ||||
| Rated Electromechanical Destruction Load (kN) | 160 | 210 | 240 | ||||
| Individual Tension Load (kN) | 80 | 105 | 120 | ||||
| Nominal Disc Diameter D (mm) | 325 | 340 | 340 | ||||
| Nominal Structural Height H (mm) | 155/160/170 | 170 | 170 | ||||
| Nominal Creepage Distance (mm) | 545 | 545 | 545 | ||||
| Connection Mark (mm) | 20 | 20(24) |
24 | ||||
| Locking Pin Type | R | R | R | ||||
| Withstand Voltage (kV) | Power Frequency | Dry | 85 | 85 | 85 | ||
| Wet | 50 | 50 | 45 | ||||
| Lightning Impulse | 130 | 130 | 130 | ||||
| Power Frequency Breakdown Voltage (kV) | 130 | 130 | 130 | ||||
| Impulse Breakdown Voltage (p.u.) | 2.85～3.19 | 2.85～3.19 | 2.85～3.19 | ||||
Radio Interference Voltage |
Ground Test Voltage (kV) | 10 | 10 | 10 | |||
| Maximum R IV(1MHz)(uV) | 50 | 50 | 50 | ||||
Weight (kg) |
12.7 | 14.9 | 15.1 | ||||
GB/T1001.1, IEC60383-1
