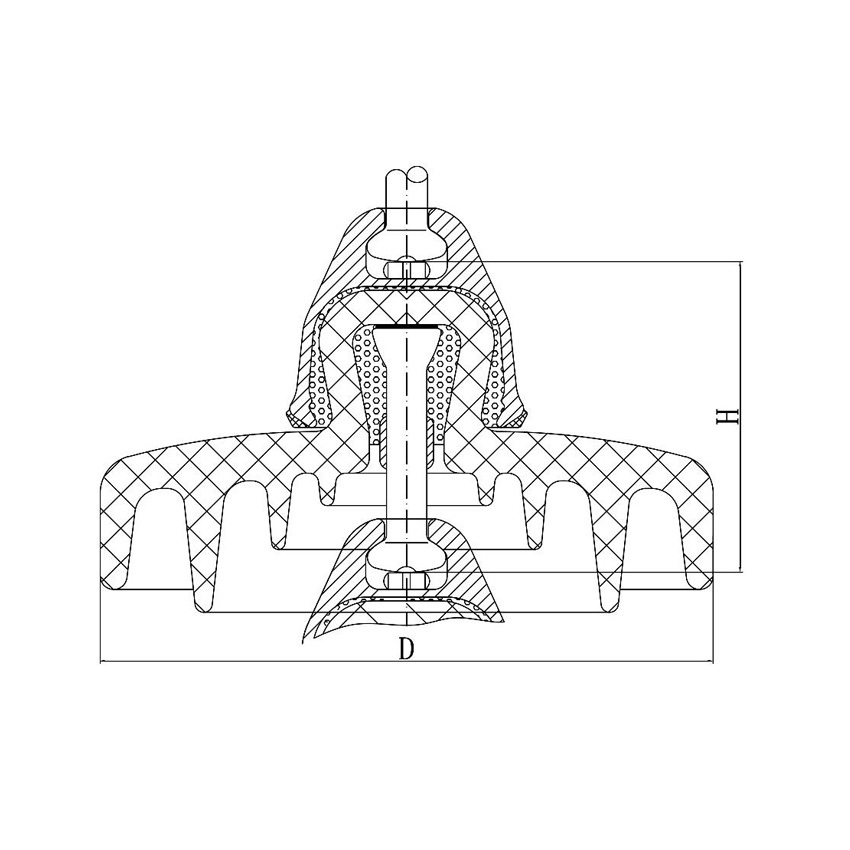

DC bell jar type (3)
Key words：
DC bell jar type
Classification：
Product Details
| IEC | U550BP | U550BP | U550BP | ||
| Insulator Code | UD550B240/635H32R | UD550B240/635H32R | UD550B240/700H32R | ||
| Model | XZP—550 | XZP1—550 | XZP2—550 | ||
| Rated Electromechanical Destruction Load (kN) | 550 | 550 | 550 | ||
| Individual Tension Load (kN) | 275 | 275 | 275 | ||
| Nominal Disc Diameter D (mm) | 380 | 400 | 400 | ||
| Nominal Structural Height H (mm) | 240 | 240 | 240 | ||
Nominal Creepage Distance (mm) |
635 | 635 | 700 | ||
| Connection Mark (mm) | 32 | 32 | 32 | ||
| Locking Pin Type | R | R | R | ||
| Positive Polarity DC Withstand Voltage (kV) | Dry | 150 | 150 | 150 | |
| Wet | 60 | 60 | 60 | ||
| Impulse Breakdown Voltage (p.u.) | 2.85～3.19 | 2.85～3.19 | 2.85～3.19 | ||
| Lightning Full Wave Impulse Dry Withstand Voltage (kV) | 150 | 150 | 150 | ||
| SF6 Breakdown Withstand Voltage (kV) | +225 | +225 | +225 | ||
Weight (kg) |
25 | 26 | 27 | ||
GB/T19443, IEC61325
