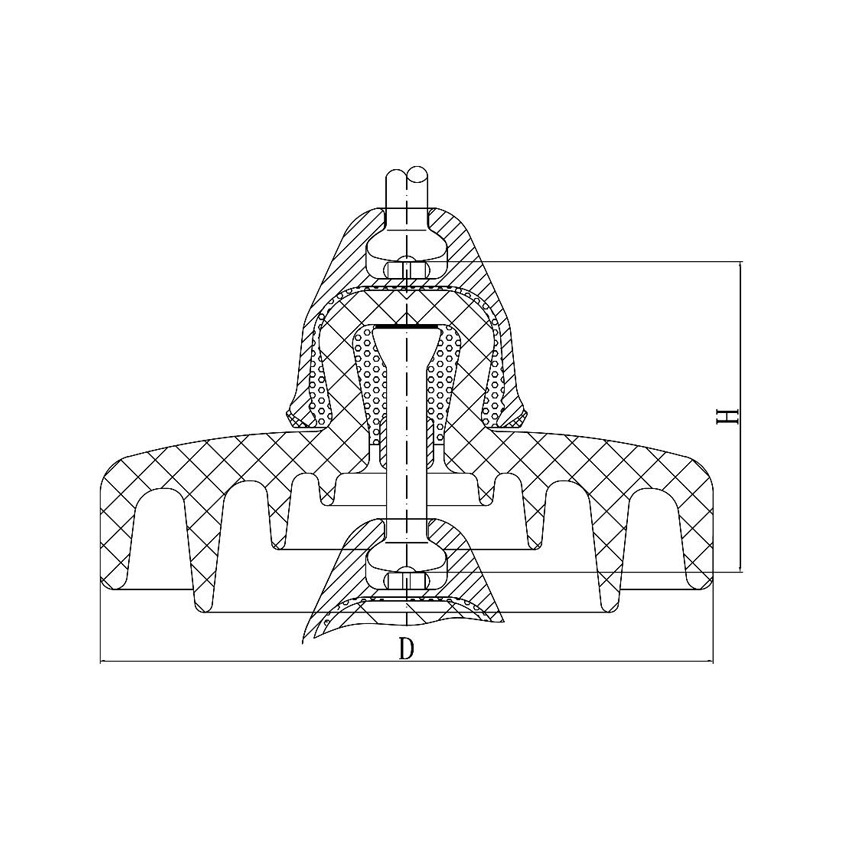

DC bell jar type (1)
Key words：
DC bell jar type
Classification：
Product Details
| IEC | U160BLP | U210BP | U300BP | ||
| Insulator Code | UD160B170/560H20R | UD210B170/560H20R | UD300B195/560H24R | ||
| Model | XZP—160 | XZP—210 | XZP—300 | ||
| Rated Electromechanical Destruction Load (kN) | 160 | 210 | 300 | ||
| Individual Tensile Load (kN) | 80 | 105 | 150 | ||
| Nominal Disc Diameter D (mm) | 320 | 320 | 340 | ||
| Nominal Structural Height H (mm) | 170 | 170 | 195 | ||
| Nominal Creepage Distance (mm) | 560 | 560 | 560 | ||
| Connection Mark (mm) | 20 | 20 | 24 | ||
| Locking Pin Type | R | R | R | ||
| Positive Polarity DC Withstand Voltage (kV) | Dry | 140 | 140 | 140 | |
| Wet | 55 | 55 | 50 | ||
| Impulse Breakdown Voltage (p.u.) | 2.85～3.19 | 2.85～3.19 | 2.85～3.19 | ||
| Lightning Full Wave Impulse Dry Withstand Voltage (kV) | 140 | 140 | 140 | ||
| SF6 Breakdown Withstand Voltage (kV) | +210 | +210 | +210 | ||
| Weight (kg) | 13.7 | 15.2 | 16.5 | ||
